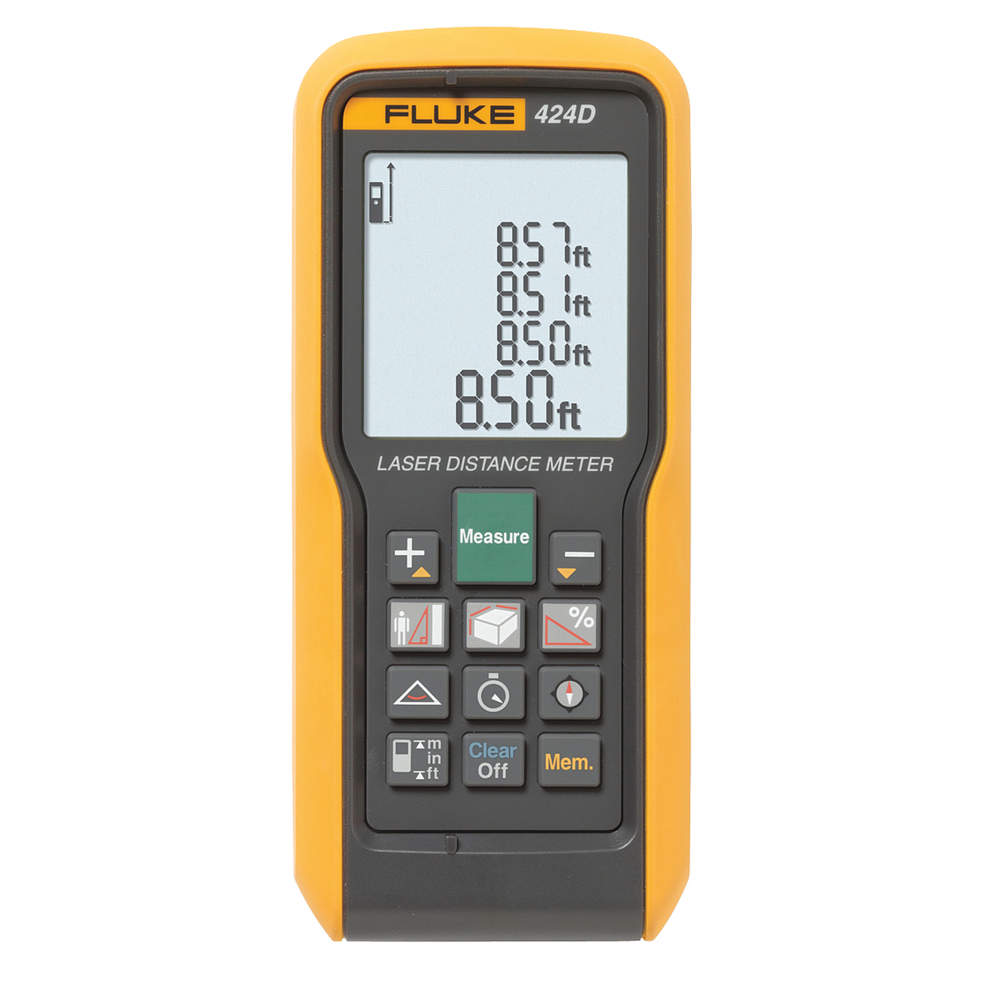

Fluke 424D Laser Distance Meter
The Fluke 424D Laser Distance Meter - measures up to 100 m (330 feet). Includes tilt sensor for hard-to-reach measurements, corner angle feature and compass.
Distance Measurement
Typical measuring tolerance 1 1.0 mm 3
Maximum measuring tolerance 2 2.0 mm 3
Range At Leica Target Plate GZM26 100 m / 330 ft
Typical range 1 80 m / 260 ft
Range at unfavorable condition 4 60 m / 195 ft
Smallest unit displayed 6 / 30 / 60 mm (10 / 50 / 100 m)
Laser point at distances 6 / 30 / 60 mm (10 / 50 / 100 m)
Tilt Measurement
Measuring tolerance to laser beam 5 0.2
Measuring tolerance to housing 5 0.2
Range 360
General
Laser cass 2
Laser type 635 nm, < 1 mW
Protection class IP54
Automatic laser off After 90 seconds
Automatic power off After 180 seconds
Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 Up to 5,000 measurements
Size (L x W x D) 127 x 56 x 33 mm
Weight (with batteries) 158 g
Temperature range Storage operation -25C to +70C (-13F to +158F)
-10C to +50C (14F to +122F)
Calibration cycle Tilt and compass
Maximum altitude 3000 m
Maximum relative humidity 85% at 20F to 120F (-7C to 50C)
Safety IEC Standard No. 61010-1:2001
EN60825-1:2007 (Class II)
EMC EN 55022:2010
EN 61000-4-3:2010
EN 61000-4-8:2010
