| SPESIFIKASI | ||||

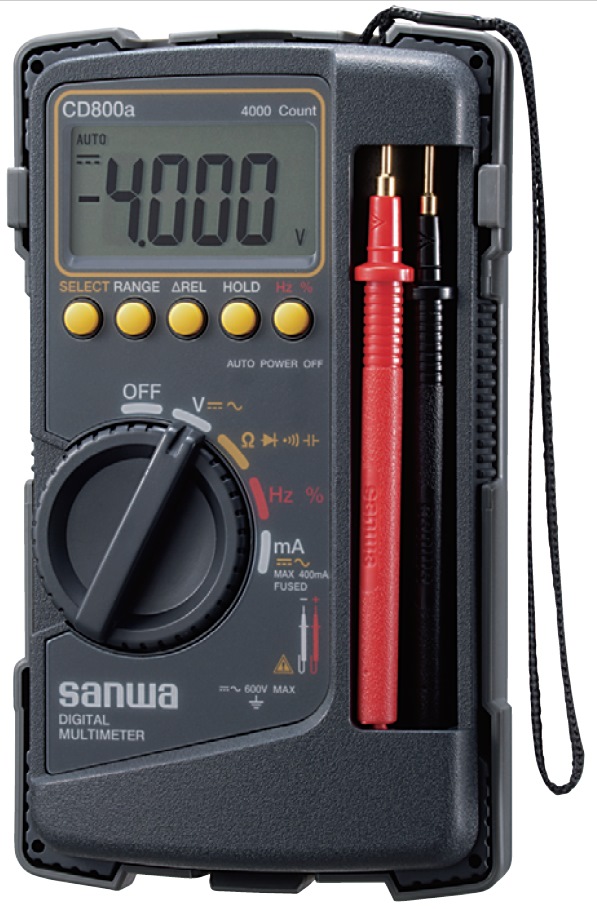

| CD800a | Pengukuran Rentang | Akurasi | Resolusi |
Input Impedance |
| DCV | 400m/4/40/400/600V | ± (0.7%+3) | 0.1mV |
DCV:
|
| ACV | 4/40/400/600V | ± (1.6%+9) | 0.001mV | |
| DCA | 40m/400mA | ± (2.2%+5) | 0.01mA | |
| ACA | 40m/400mA | ± (2.8%+5) | 0.01mA | |
| Resistansi | 400/4k/40k/400k/4M/40MΩ | ± (1.5%+5) | 0.1Ω | |
| Kapasitansi | 50n/500n/5µ/50µ/100µF | ± (5%+10) | 0.01nF | |
| Frekuensi | 5Hz~100kHz | ± (0.5%+3) | ||
| Skala | 20%~80% | ± (0.5%+5) | ||
| Kontinuitas | Suara bel dan dibawah 10Ω dan 120Ω. Tegangan Terbuka: approx 0.4V | |||
| Uji Diode | Tegangan Terbuka: approx. 1.5V | |||
| Bandwidth | 40~400Hz | |||
| Sekering |
0.5A/250V 1.5kA 5.2X20mm keramik | |||
| Baterai | R6PX2 | |||
| Ukuran (H x W x D) | 176mm x 104mm x 46mm | |||
| Berat | 340 g | |||
| Aksesoris |
Hand strap | |||
| Panduan pengunaan manual | ||||
